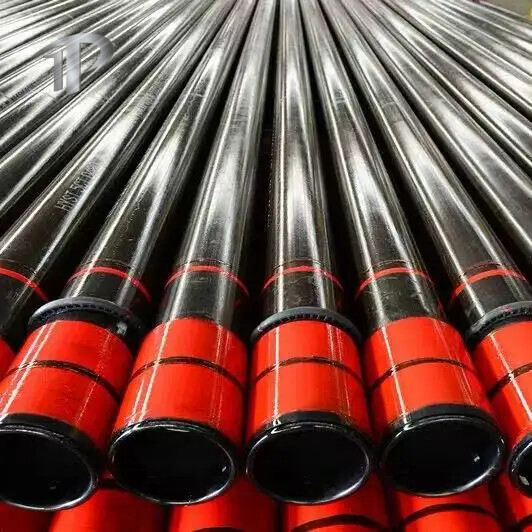

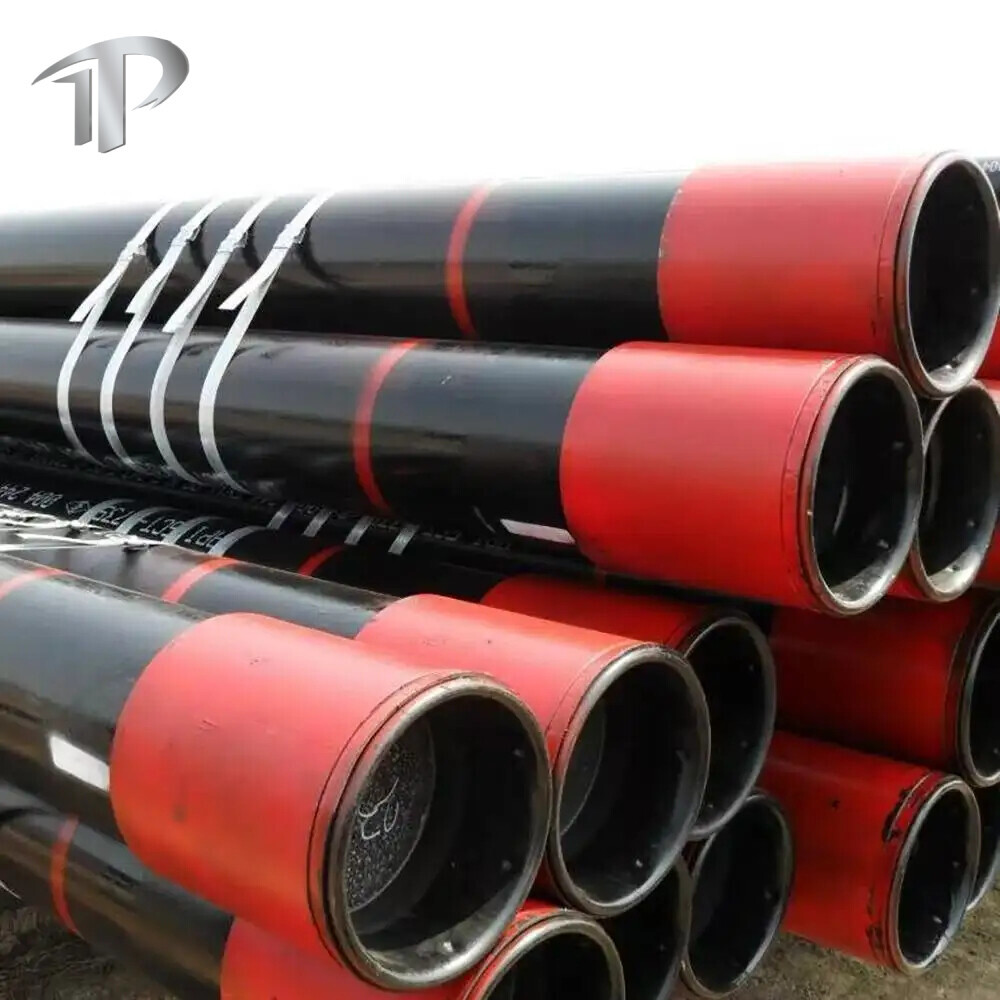

Oil Casing

Oil casing has a wide range of applications in the petroleum industry, mainly used to support the wellbore of oil and gas wells to ensure the smooth progress of drilling processes and the normal operation of oil wells after completion. Oil casing is one of the important equipment in oil drilling, usually used together with drill rods, core pipes, drill collars, and small-diameter drilling steel pipes

Email：sales16@btsteelgroup.com

Phone：+86 15965252816

WhatsApp：+86 15965252816

Inquiry Now →

Product Description

All specifications products can be customized according to customer requirements
Product name	Oil Casing Pipe
Process	Hot rolled and cold drawn
Standard	API 5L, API 5CT, ASTM A106/A53, ASTM A519, JIS G 3441, JIS G3444, JIS G3445 DIN 2391, EN10305, EN10210, ASME SA106, SA192, SA210,SA213, SA335, DIN17175, ASTM A179
Our diameter	1/8 – 30 inch (10.3-762mm)
Wall Thickness	0.049” – 2.5” (1.24- 63.5mm)
Length	Random Length, Fixed Length, SRL, DRL
Steel Grade	API 5L: GR B, X42, X46, X56, X60, X65, X70 ASTM A53/A106: GR A, GR B, GR C ASME SA106: GR.A, GR.B, GR.C ASME SA192: SA192 ASME SA209M: T1, T1a ASME SA210: GR.A-1, GR.C ASME SA213: T2, T5, T9, T11, T12, T22 ASME SA335: P2, P5, P9, P11, P12, P22, P91 DIN17175:ST35.8, ST45.8, 15Mo3, 13CrMo44
Surface	Fusion Bond Epoxy Coating,Coal Tar Epoxy,3PE,FBE,Varnish coating,Bitumen coating,Black Oil coating as per customers requirement
Treatment	Heat treatment:Annealed: Bright annealed,Spheroidize annealed, Normalized, Stress relieved, Cold finished, Quenched and Tempered.
Application	Applicable to the general structure, mechanical structure, water wall panel, economizer, super heater, boiler and heat exchanger with seamless steel tubes, and to transport liquid, gas, oil etc.

Specification: API SPEC 5CT
Size		Steel grade & connection type
ODmm(inch)	WT/mm	H40	J55,K55	L80-1,L80-9Cr,L80-13Cr,R95	N80-1,N80Q	C90,T95	C110	P11O	Q125
114.30(4-1/2'')	5.21	S	S
	5.69		S/B
	6.35		S/L/B	L/B	L/B	L/B		L/B
	7.37			L/B	L/B	L/B		L/B
	8.56							L/B	L/B
127.00(5'')	5.59		S
	6.43		S/L/B
	7.52		S/L/B	L/B	L/B	L/B		L/B	L/B
	9.19			L/B	L/B	L/B		L/B	L/B
	11.10			L/B	L/B	L/B		L/B	L/B
	12.14			L/B	L/B	L/B		L/B	L/B
	12.7			L/B	L/B	L/B		L/B	L/B
139.70(5-1/2'')	6.2	S	S
	6.98		S/L/B
	7.72		S/L/B	L/B	L/B	L/B		L/B
	9.17			L/B	L/B	L/B		L/B
	10.54			L/B	L/B	L/B		L/B	L/B
168.28(6-5/8'')	7.32	S	S/L/B
	8.94		S/L/B	L/B	L/B	L/B		L/B
	10.59			L/B	L/B	L/B		L/B
	12.06			L/B	L/B	L/B		L/B	L/B
177.80(7'')	5.87	S
	6.91	S	S
	8.05		S/L/B	L/B	L/B	L/B
	9.19		S/L/B	L/B	L/B	L/B		L/B
	10.36			L/B	L/B	L/B		L/B
	11.51			L/B	L/B	L/B		L/B
	12.65			L/B	L/B	L/B		L/B	L/B
	13.72			L/B	L/B	L/B		L/B	L/B

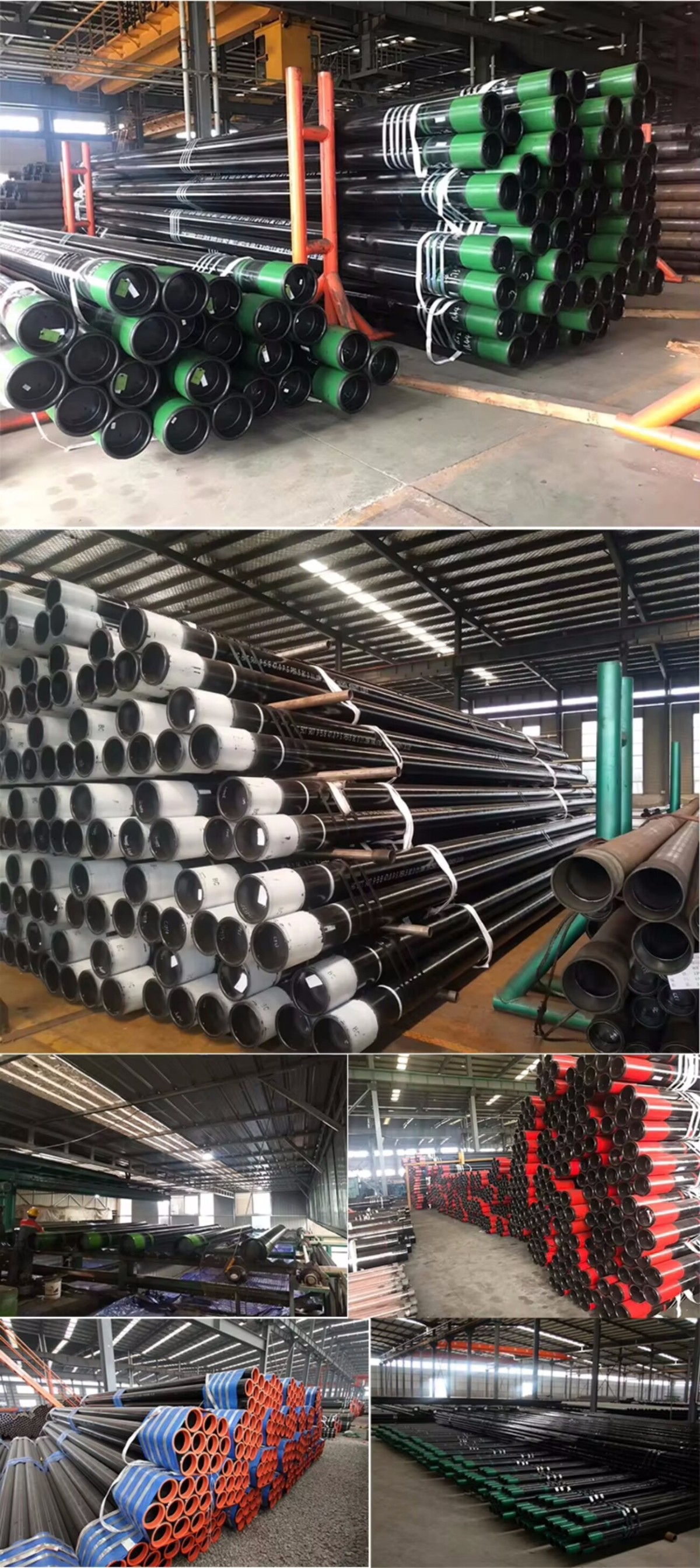

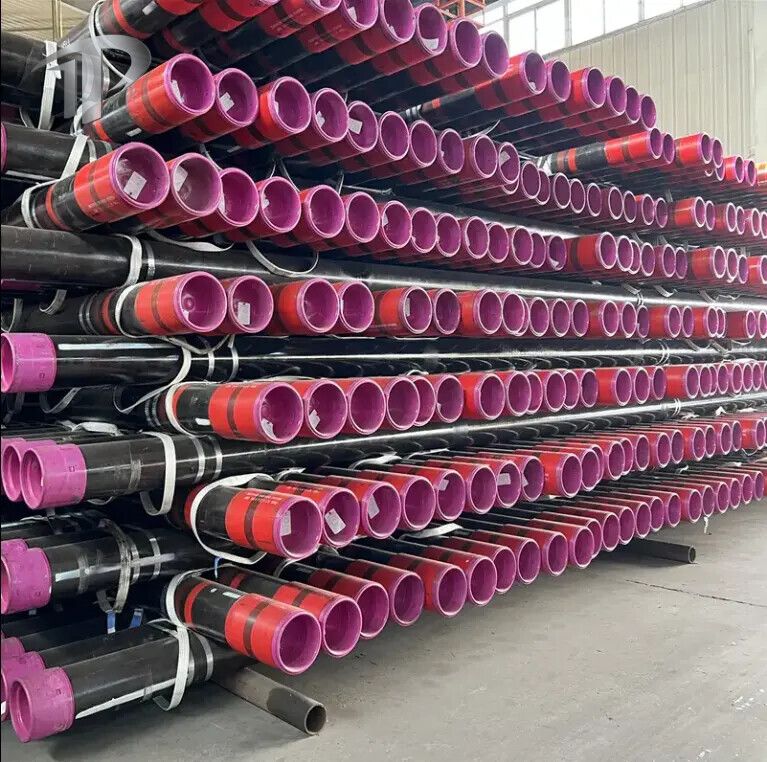

Product Display
